Cyclus gear hanger alignment tool
Article number 7720010
EAN-number 8590831240314
Consumer price
€74,95
Dealer recommended price
Wholesale price
In stock
Description
Dim. & weights
Cyclus Tools gear hanger alignment tool
Use this tool to check and correct the exact geometric position/angle of the rear mech hanger in relation the frame dropout.
In order to do this, first unscrew the derallier and mount the rear wheel in the frame.
1. Remove the nut from the threaded spindle, then screw the tool into the derailleur hanger as far as it will go and lock it with the nut (SW 17).

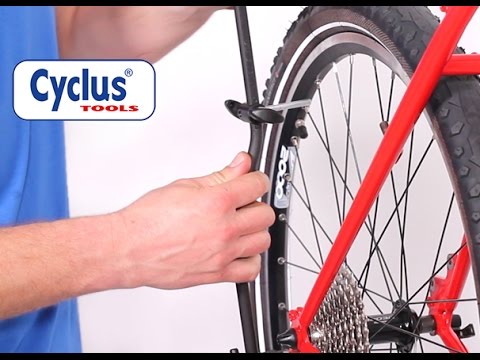

2. Check at several points that the perimeter of the wheel is evenly spaced from the rim (using the tool measuring pin).
If there are any differences, the derailleur hanger position needs to be adjusted accordingly, by applying gentle pressure on the tool to bend it back straight.
Dropout control with article number 7720011
Brand
Cyclus
Main material
Steel
Article number 7720010
EAN-number 8590831240314
Number in inner box
1
Number in outer box
40
Unit weight
0.623 kg
Unit weight including package
0.65 kg
Packaging
Plastic bag
Unit length including package
100 mm
Unit width including package
20 mm
Unit height including package
420 mm
